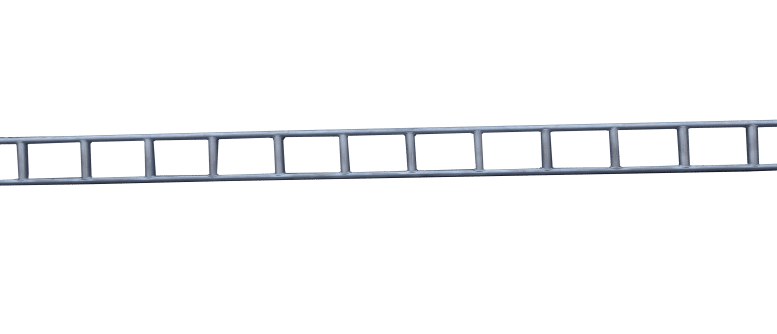

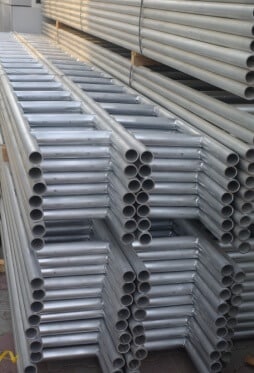

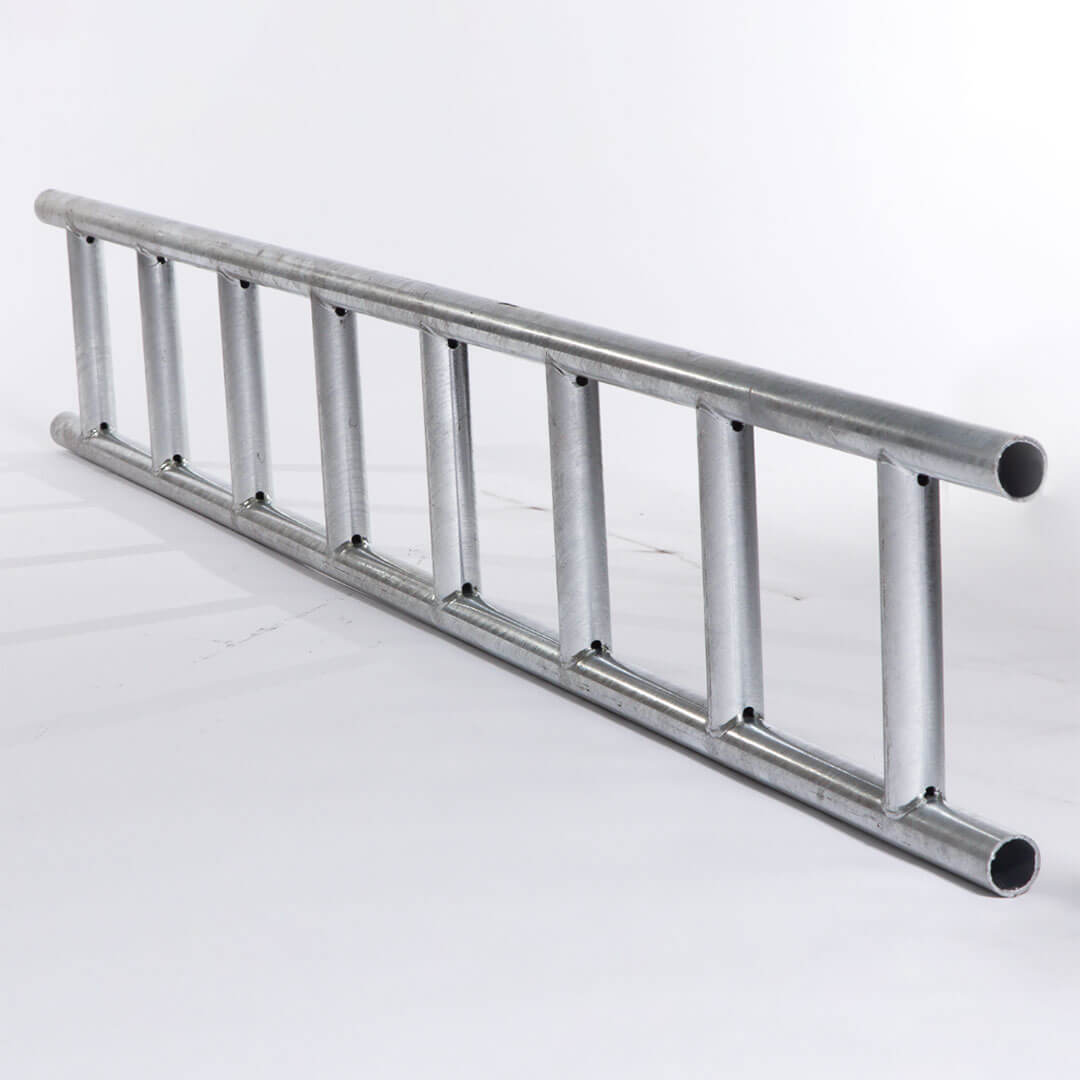

Aluminium Ladder Beam

Alu Scaff Tube Profile : 48.3*4 mm wall Thickness Grade : 6082 (T6) All Joints are TIG Welded (welder qualified to BS EN 287) Designed as per BS 8118 & BS EN 1999-1-1 Standard

Inquire Now

ASC Code	No of Vertical Tube	Size (Mtr)	Self Weight (kg)	CBM (m³)
ASC-ALB-01	6 nos	2	7.9	0.0355
ASC-ALB-02	9 nos	3	11.8	0.0532
ASC-ALB-03	13 nos	4	16.1	0.071
ASC-ALB-04	16 nos	5	20.1	0.0887
ASC-ALB-05	19 nos	6	24.5	0.1065
