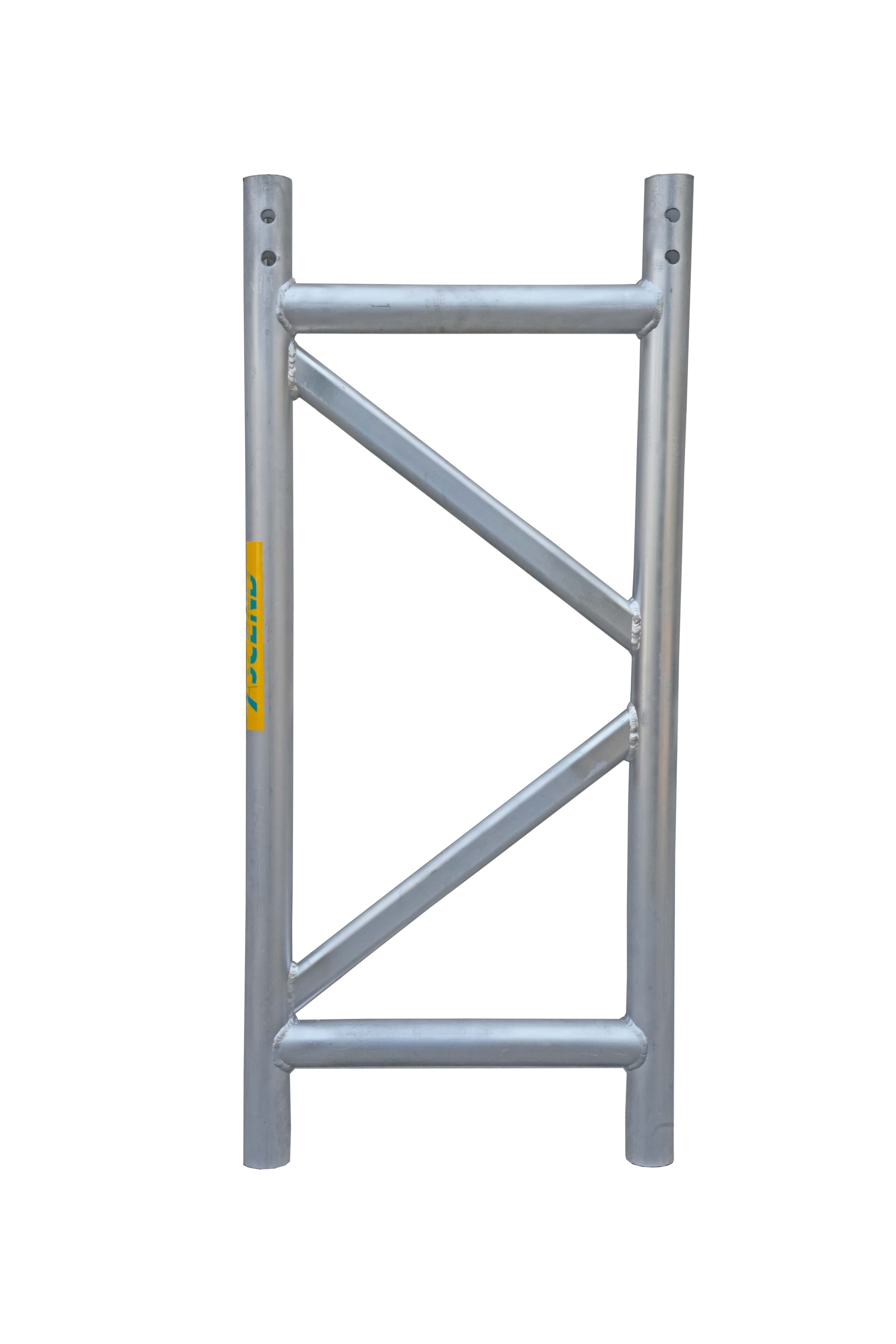

Lattice Beam (450 mm)

Lattice Beam are made of Aluminium Tubes of size 48.0 OD and 4.0 mm wall thickness, A Lattice beam, support or similar that is anchored at one end and that is free at the opposite end. Platform is cantilevered from and travels up and down outwardly to a face of, the support structure. A scaffolding lattice beam, resembling a ladder, composed of a combine of hollow members connected by struts. Ascend Lattice beam available width 450 mm & 750 mm.

Inquire Now

Ladder Beam Standard Length : (2, 3, 4, 5 & 6 Mtr)

Non – standard length made to order

Overall Width : 353 mm

Centre to Centre : 305 mm (12″)

Technical Specification Lattice Beam (450 mm) Standard Length : (2.19, 3.16, 4.12, 5.1 & 6.06 Mtr) Non – standard length made to bulk order Overall Width: 450 mm Alu Scaff Tube Profile: 48.0*4 mm wall Thickness Alu Diagonal Profile: 40.0*21.0*3.5 mm Wall Thickness Grade: 6082 (T6) All Joints are TIG Welded (welder qualified to BS EN 9606-2:2004) Designed as per BS 8118 & BS EN 1999-1-1 Standard

All pictures shown are for illustration purpose only.
